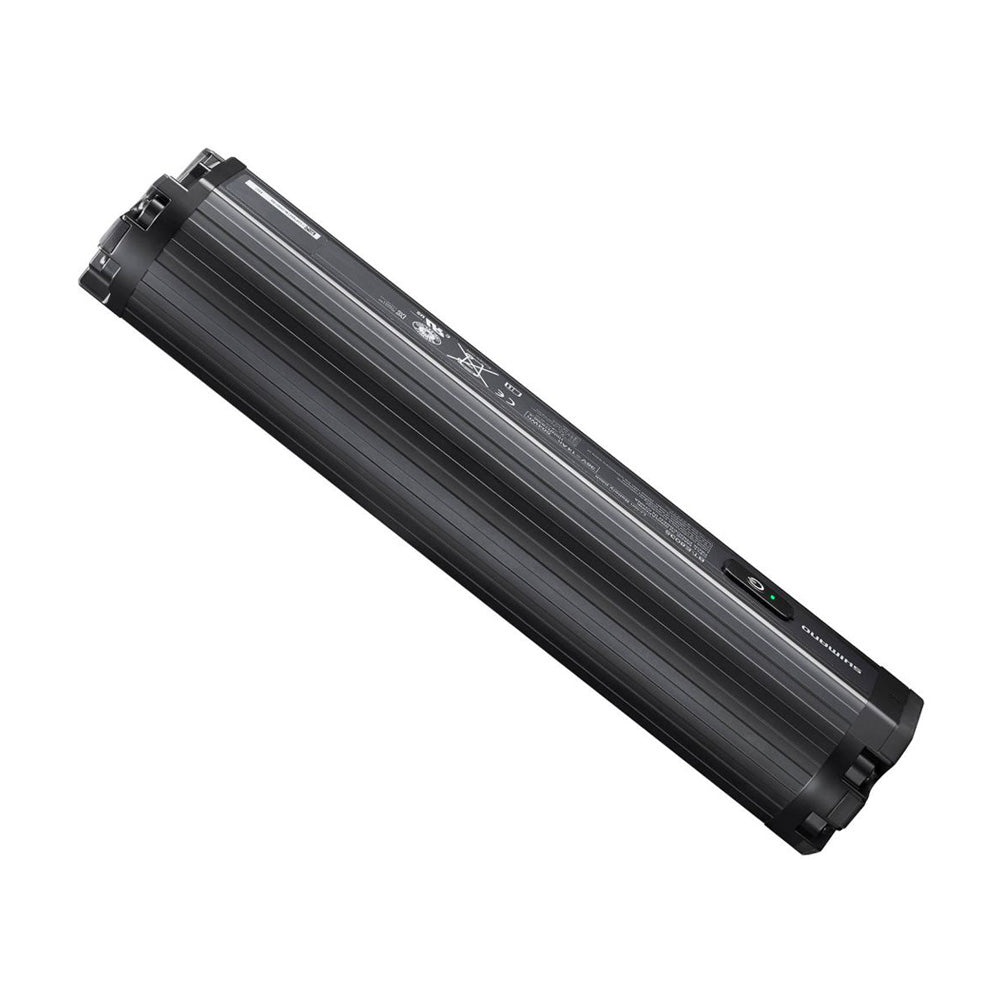

Shimano battery Steps frame/integrated BT-E8035 | 36 V | 14 Ah | 504 Wh

Note: Batteries are only shipped to AT/DE

SHIMANO STEPS- Integrated battery for down tube - 504 Wh

The BT-E8035 battery, specially developed for the SHIMANO STEPS system, integrates perfectly into the down tube and has a capacity of 504 Wh.

• High water resistance (IPX5)
• More compact size
• More convenient opening of the double ratchet lock
• Capacity: 504 Wh (36 V, 14 Ah)

Product specifications

• MODEL NUMBER: BT-E8035
• GROUP: SHIMANO STEPS E8000 groupset
• Colour: Standard
• Average weight: 2.9
• Note: * BT-E8035 for Japan (13 Ah, 468 Wh) ** EC-E8004 (*** If 100 V AC) **** with SM-BTE80 or EW-CP100
• Chemistry: Li-ion
• Position: Integrated
• Nominal voltage (V): 36
• Nominal capacity (Ah): 14
• Nominal capacity (Wh): 504
• Service life in charge cycles (remaining capacity after this): 1,000 (more than 60 %)
• Charging time (hours)_SOC = 100 %: ** 4 (*** 4,5)
• Charge level indicator: ✔
• Error signal: ✔
• Charging connection: -
• System on/off switch: ✔
• Compatible charger: EC-E6000, EC-E6000-3 (for Japan), EC-E6002, EC-E8004
• Compatible battery holder: BM-E8030-A BM-E8030-B BM-E8031-A BM-E8031-B
• Charging time (hours)_SOC = 50 %: * 2
• Charging time (hours)_SOC = 80 %: ** 2,5 (*** 3,2)
• Compatible charger: EC-E6002 EC-E8004
• Position: Integrated
• Compatible adapter for charging: SM-BTE80
