SQ-Lab stem 802 2.0 35° 31.8
SQ-Lab stem 802 2.0 35° 31.8 - 90 mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Manufacturer's specifications
Manufacturer's specifications
SQlab GmbH
Postweg 482024 Taufkirchen
DE
E-Mail: info@sq-lab.com
Tel: 49 89 666 10460
SQlab GmbH
Postweg 482024 Taufkirchen
DE
E-Mail: info@sq-lab.com
Tel: 49 89 666 10460
Description

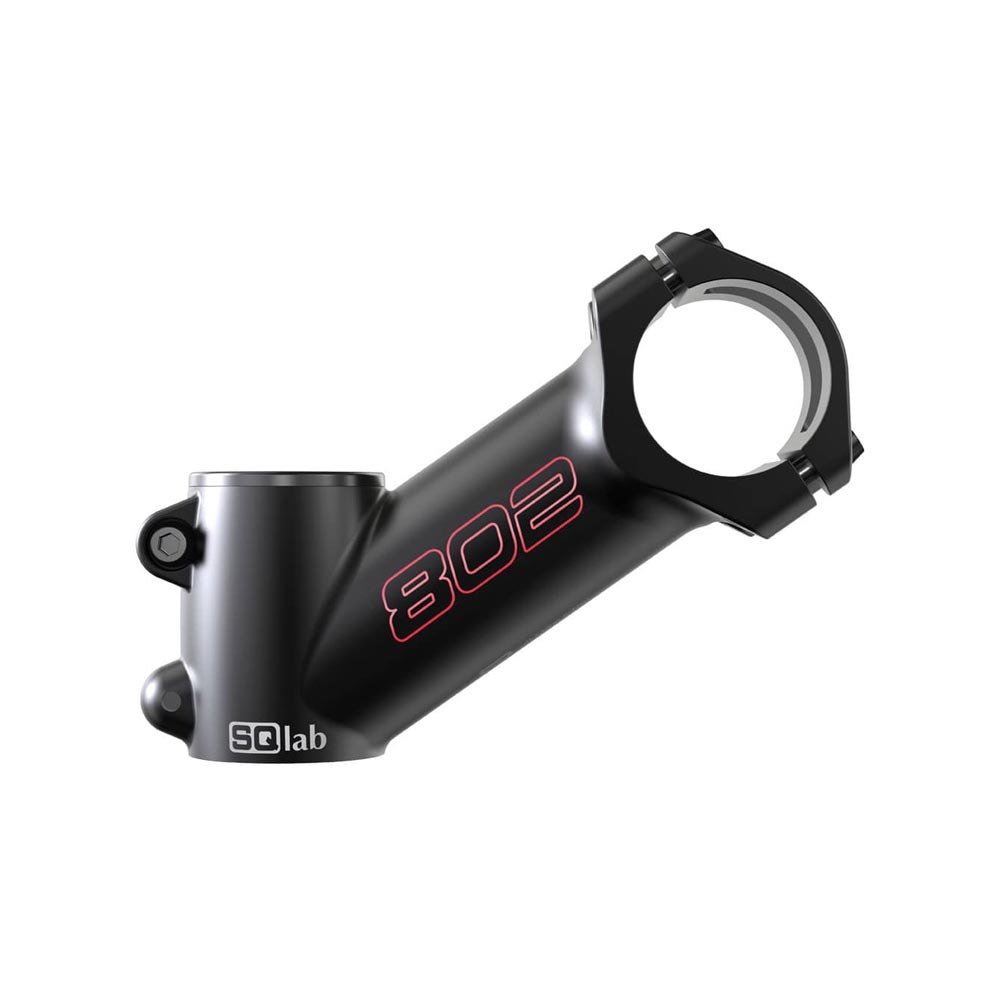

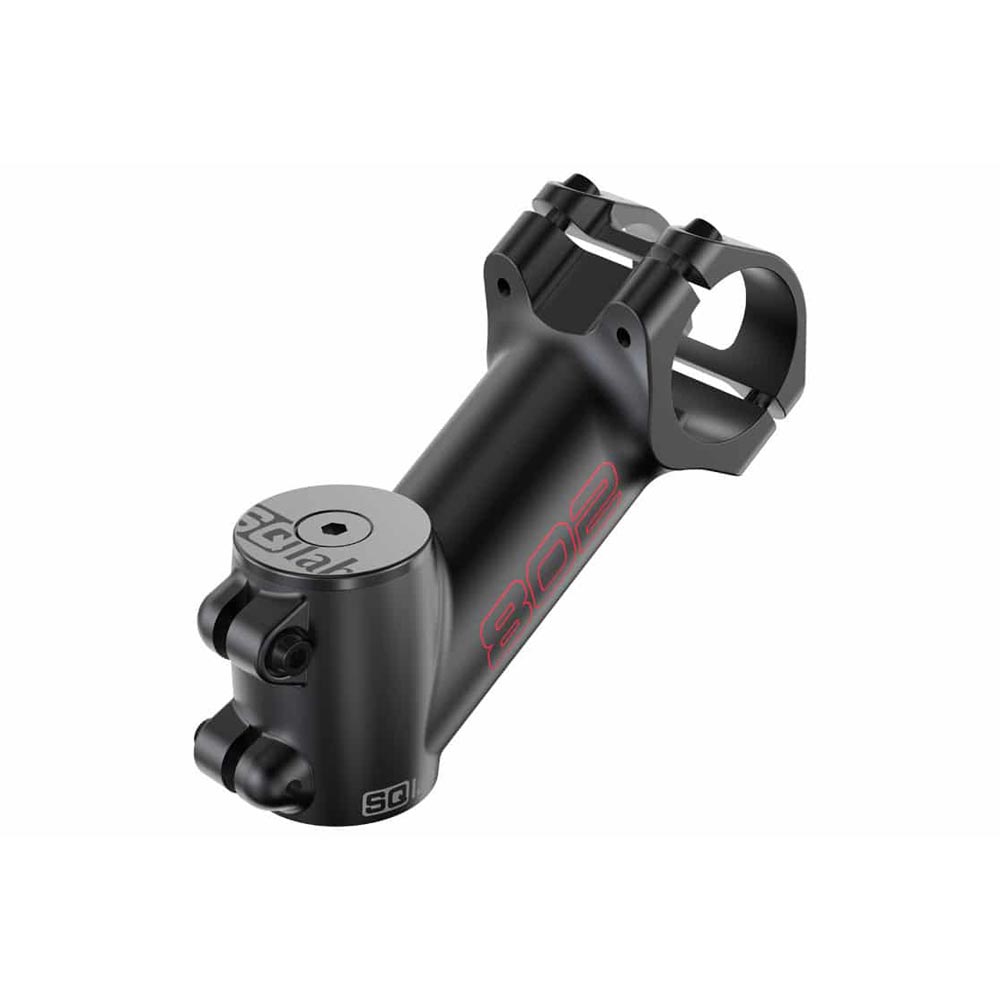

High-quality 35° stem for 31.8 oversize handlebars, suitable for our 302 trekking handlebar series. The 802 2.0 stem is supplied without the SQlab Ahead Cap 1 1/8" and countersunk bolt shown.
TECHNICAL DATA:
- Item number(s): 2220 / 2221 / 2222
- Weight in g: approx. 135 / 145 / 149
- Material: Aluminium 6061
- Bolt material: steel
- Stem angle in °: +35°
- Length in mm: 70 / 90 / 100
- Clamping handlebar in mm: 31.8
- Clamp width handlebar in mm: 42
- Steerer tube clamping in mm: 28.6
- Clamping height steerer tube in mm: 45
- Minimum head tube overlap in mm: 35
- maximum tightening torque in nm: 6
