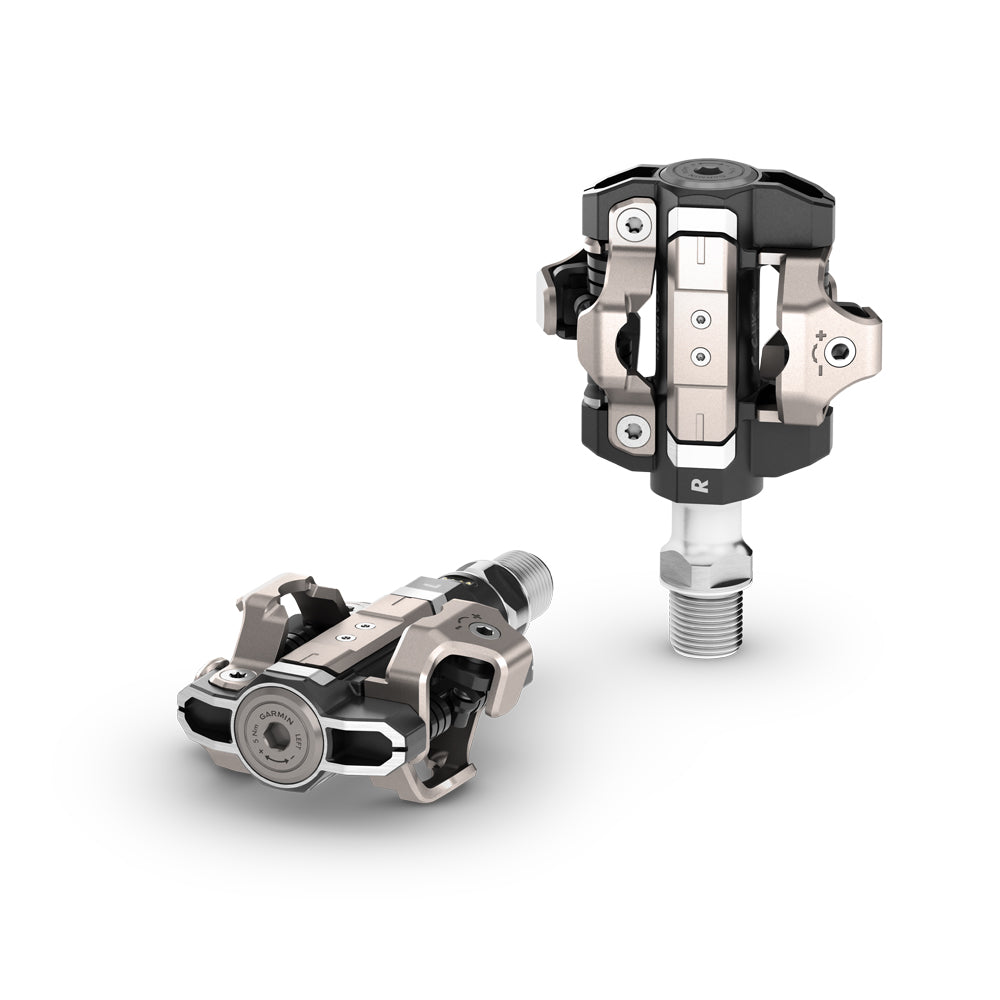

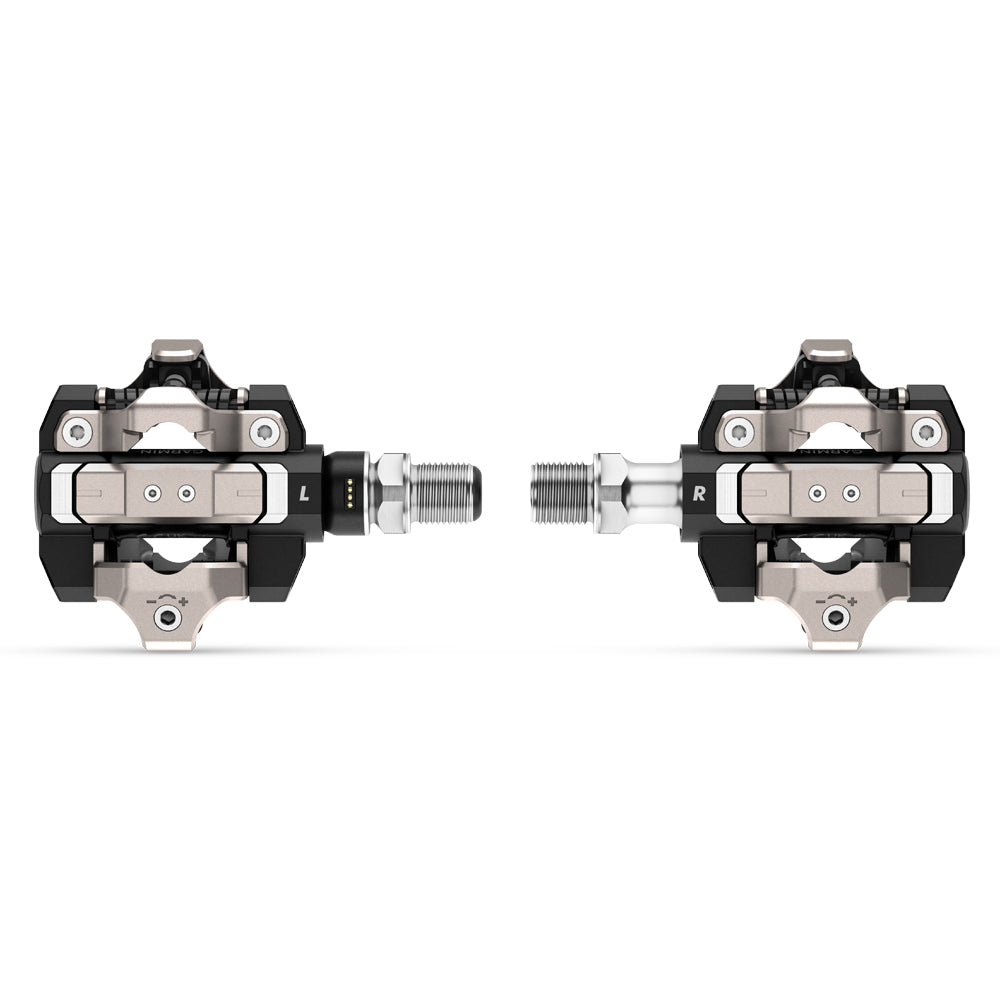

Garmin Rally XC110 wattmeter pedal system

Track your performance with the Rally XC110. The watt measurement pedal systems with one-sided measurement provide accurate performance data and you can easily switch between our road and off-road pedal bodies.

• Easy change of the power sensor between pedal bodies
• Rechargeable for up to 90 hours of riding time
• Fast response time and up to +/- 1 % accurate
• Smart Pedal IQ calibration warns when recalibration is required
• Compatible with your Shimano SPD cleats
• Easily switch to a system with measurement on both sides at any time (sold separately)

EASY CHANGE

The wattmeter pedal systems are installed like any other pedal and allow you to quickly switch between bikes. The removable power sensor is suitable for use with Rally 110 or 210 pedal bodies for road or off-road bikes (additional pedal bodies sold separately or as a bundle).

RELIABLE MEASUREMENTS

Reliable power and cadence data gives you new insights into your rides and training.

HIGH ACCURACY

With revised strain gauges and the new gyroscope, the Rally™ XC110 is very responsive and offers a measurement accuracy of +/- 1%.

CALIBRATION NOTE

The smart Pedal IQ calibration function warns you when recalibration is required due to various factors, e.g. after significant temperature fluctuations since the last calibration (pairing with compatible Garmin products required).

LONG TOURS

These rechargeable pedals deliver up to 90 hours of riding time. Use the quick charge and after just 15 minutes you can ride again for up to 12 hours. Travel mode activates the pedals' sleep mode to save the battery during transport.

METAL DESIGN

Maximum robustness. For tougher training sessions. Rally™ XC110 pedals have been redesigned and are now made entirely of metal. The result? Greater durability and a lower overall height, so the pedals are less likely to hit rocks and roots.

TECHNICAL DATA:

General

• Weight: 444 g (15.7 oz)
• Height: 11.5 mm (0.45-inch)
• Adjustable release hardness
• Water resistance: IPX7
• Maximum rider weight: 105 kg (231.5 lbs)
• Cleat type: SHIMANO SPD
• Q-factor: 53 mm (55 mm with the included 2 mm washer)
• Interchangeable pedal bodies: Compatible with all Rally 110/210 pedal bodies
• Pedal body material: Metal pedal body
• Power data
• Battery: Rechargeable
• Quick charge function: 12 hours with 15 minutes charging time (USB-C required)
• Accuracy: 1%
• Battery life: Up to 90 hours
• Temperature compensation:
• Compatible with oval chainrings
• Measuring location: Axle
• Manual calibration
• Communication: ANT+®, BLUETOOTH® and USB-C
• Smart Pedal IQ™ calibration
• Travel mode

Garmin Connect™

• Compatible with Garmin Connect™ (online community for analysing, classifying and sharing data)
