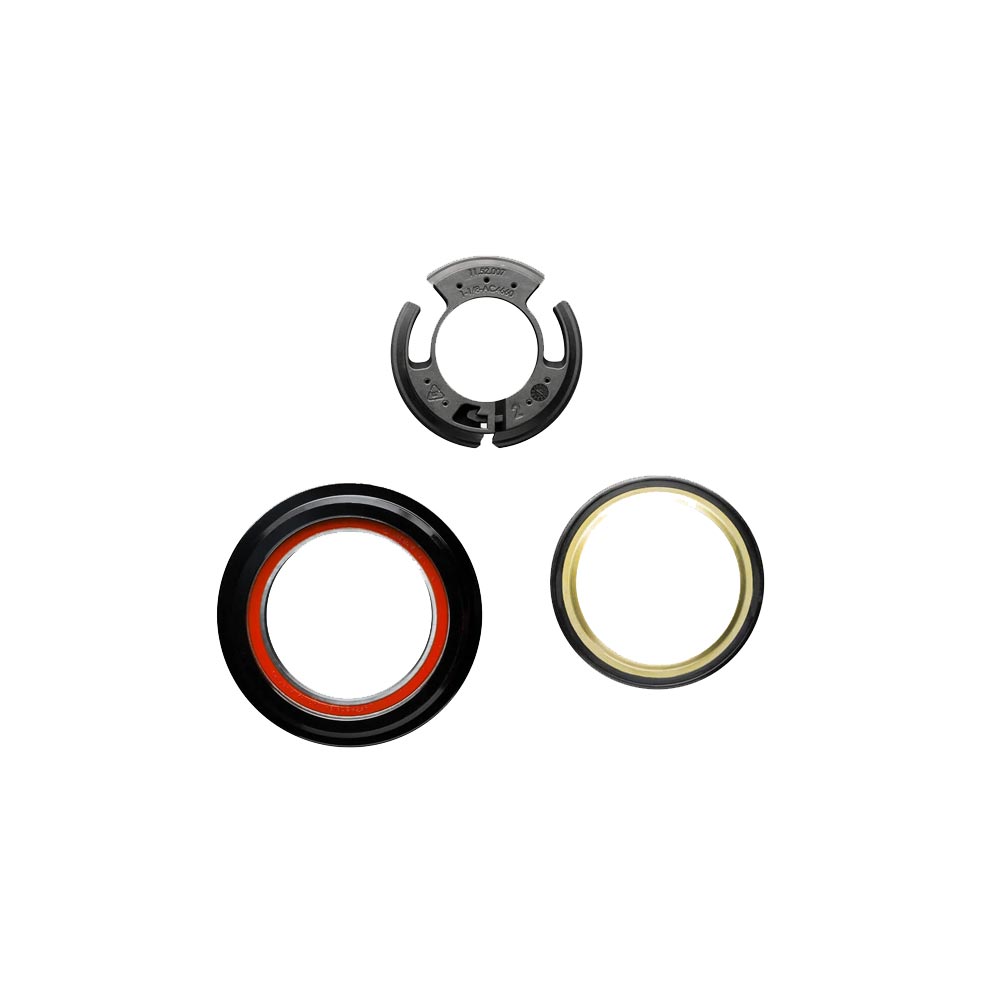

Acros upper part headset for integrated cable routing (icr) ZS-56

Tax rates are inconspicuous, but indispensable. But above all, a headset is more complex than it seems at first glance. Our zs56-upper part with integrated cable guide (icr) is the result of long development work, so that you can easily install it and have your peace for a long time. This is ensured by a double-sealed angular contact ball bearing, which we fill with our optimized headset grease. Due to the two sealing discs with double lip seal, the grease is held securely inside the industrial ball bearing and moisture and dirt can not penetrate into the bearing.

• double sealed angular contact ball bearings
• Centering ring made of glass fiber reinforced plastic
• Metal reinforced sealing washer

TECHNICAL DATA:

• Bearing diameter upper part (ID): 56 mm
• steerer tube (SD): 28.6 mm / 11 / 8"
• Bearing dimensions: 52 x 42 x 7
• Bearing height: 7 mm
• Bearing
