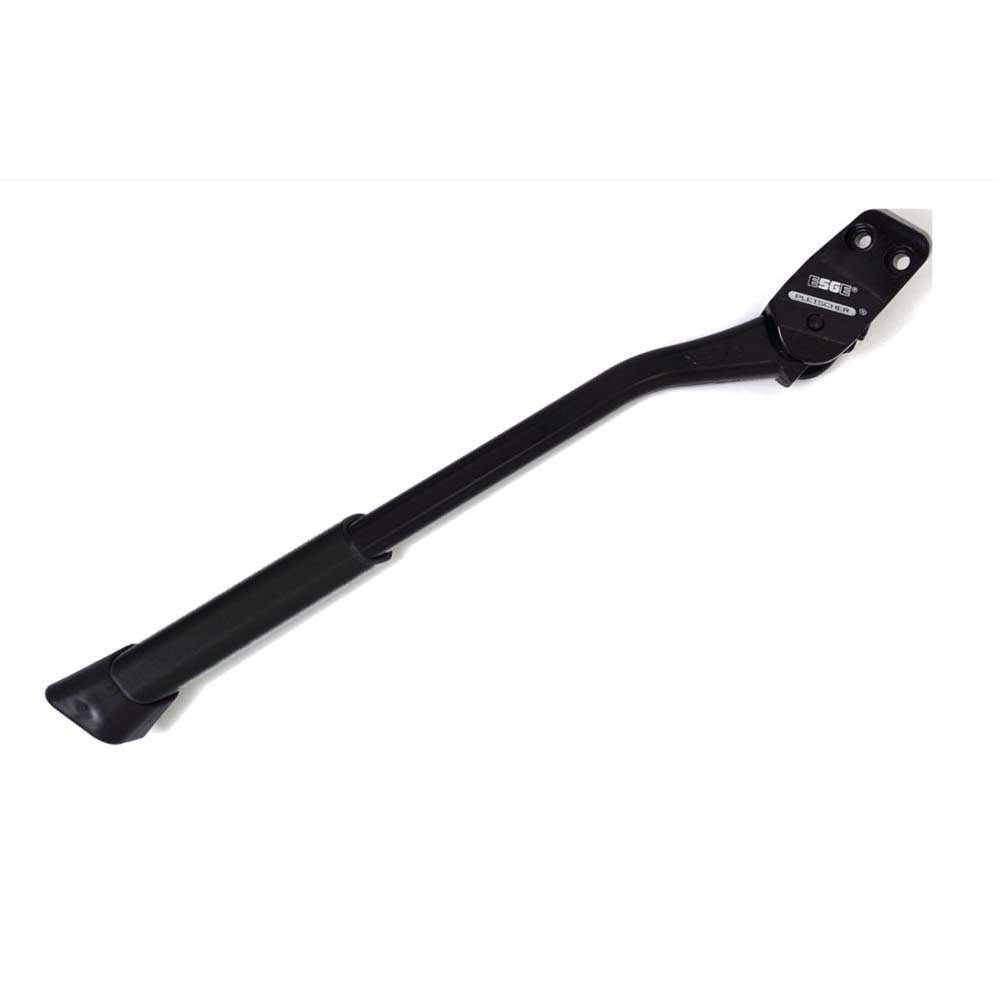

Pletscher rear kickstand Comp Flex 18 mm

Application

• ESGE rear wheel support
• Swivel movement via compression spring
• End position damping of the strut
• endurance test folding mechanism
• length adjustable in 7.5mm intervals

Scope of delivery

• Mounting M5x20 / M6x20 (other screws on request)
• Sliding sleeve with F18 support shoe

Material

• Die-cast aluminium GD-AlSi9Cu3
• Colour support: powder coating black or metallic silver
• Colour sliding sleeve: black, white, red, silver, titanium
• Pin steel case hardened, zinc plated
• Fixing screws stainless steel

Technical design

• Strut length L1 210 - 375 mm every 7.5 mm (20"-29")
• Length adjustment by means of grub screw
• (max. 4.3 Nm)
• Support hole spacing 18 mm
• Weight 350 g
• max. load 50 kg
