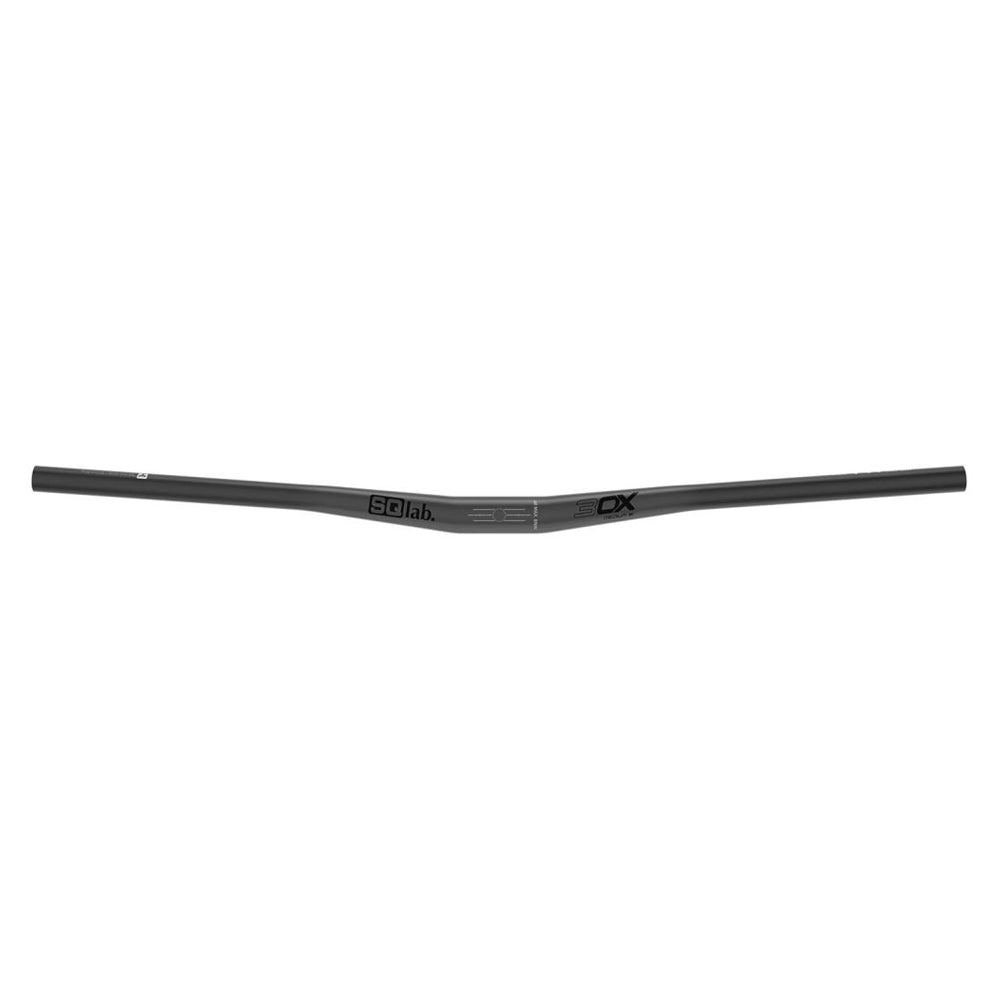

SQ-Lab handlebars 3OX aluminium, med rise 12

The 16° backsweep (bend to the rear) ensures a straight transition from the forearm to the hand when the seat is in an extended position. The 4° upsweep (bend upwards) determines the elbow position for an active riding style. The perfect coordination of shape, wall thickness and diameter together with the complex bend, optimized for riding dynamics and anatomy, make the new SQlab 3OX handlebar the currently most stable and at the same time lightest handlebar in its range.

TECHNICAL DATA:

• Application area: Gravity & E-Performance
• width in mm: 780
• max. shortenable width in mm: 720
• Rise in mm: 30
• Backsweep in °: 12
• Upsweep in °: 4
• Stretch in mm: 0
• material: aluminium
• Weight in g: 325
• Clamp width of stem: min. 46mm - max. 58mm
