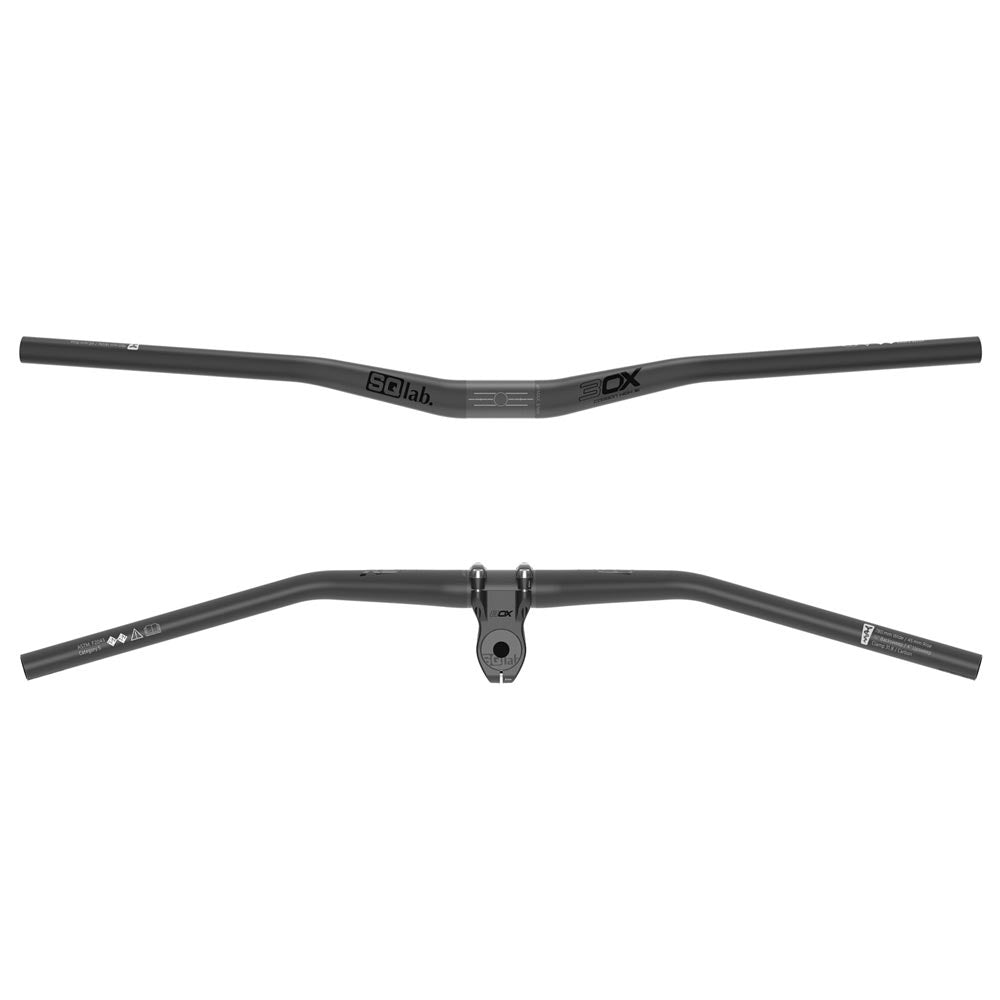

SQ-Lab handlebars 3OX Carbon high 16

The 16° backsweep ensures a straight transition from the forearm to the hand when the seat is stretched out. The 4° upsweep determines the elbow position for an active riding style. The 15mm, 30mm or 45mm rise (handlebar height) allows you to customise your riding position.

Passed the "Zedler End of Life" test with flying colours. The perfect coordination of shape, wall thickness and diameter together with the complex bend, optimised for riding dynamics and anatomy, make the new SQlab 3OX handlebars the most stable and at the same time lightest handlebars currently available.

The handlebars are supplied without the stem shown.

TECHNICAL DATA:

• Weight in g: approx. 245
• Material: T1K carbon
• Width in mm: 780
• Maximum shortenable width in mm: 720
• Rise in mm: 45
• Backsweep in °: 16
• Upsweep in °: 4
• Downsweep in °: 0
• Clamping in mm: 31.8
• Clamp width of the stem in mm: MIN. 46 - MAX. 58
• Maximum tightening torque in nm: 8
• Maximum permissible system weight in kg: 120
