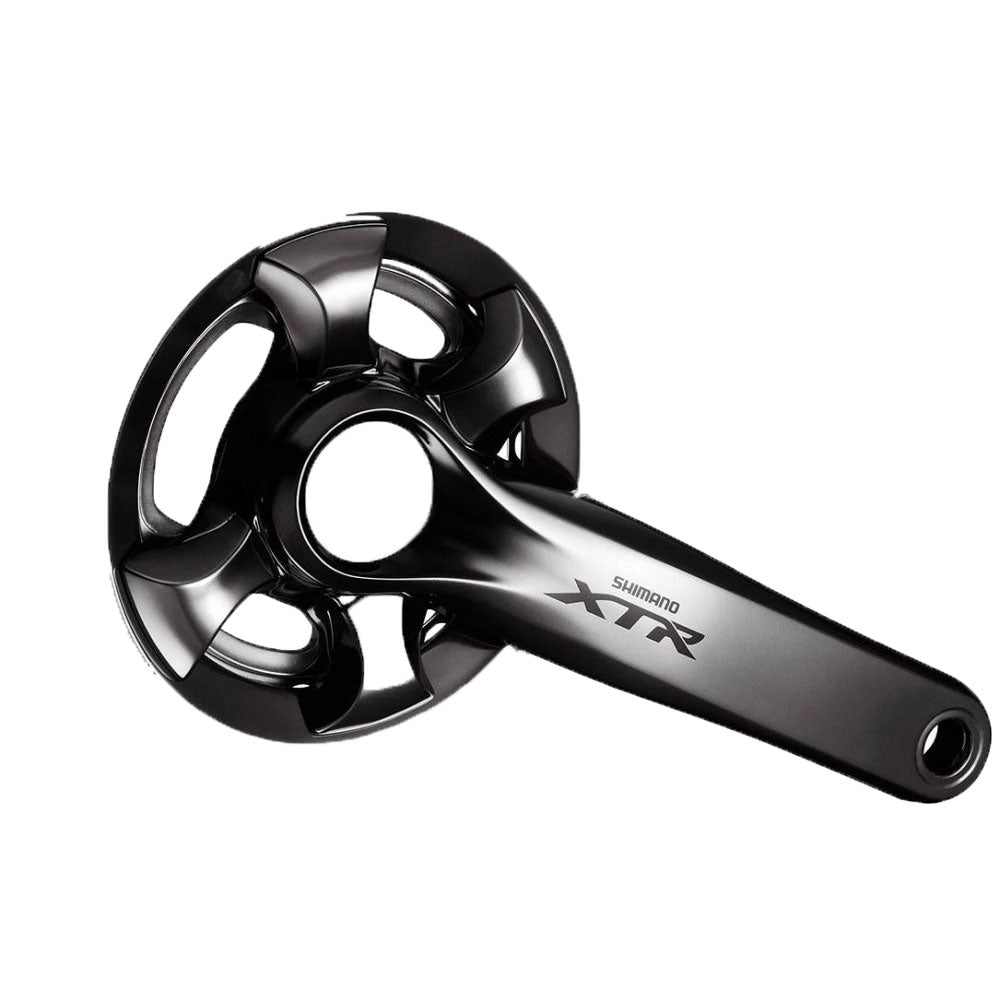

Shimano crank arm XTR FC-M9020-B2 175 mm
Shimano crank arm XTR FC-M9020-B2 175 mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Manufacturer's specifications
Manufacturer's specifications
Shimano Europe B.V.
High Tech Campus 925656 Eindhoven
DE
E-Mail: info@shimano.com
Tel: 31402612222
Shimano Europe B.V.
High Tech Campus 925656 Eindhoven
DE
E-Mail: info@shimano.com
Tel: 31402612222
Shimano crank arm XTR FC-M9020-B2 175 mm
Description
Specifications
Range of use | All Mountain, Trail, Enduro |
Compatibility | 1-speed, 2-speed, 3-speed |
Chainring mounting | 96 mm bolt circle, 4 arm asymmetrical |
Series | XTR M9000 |
Crank arm material | Aluminium |
Axle material | Steel |
Crank arm length | 175 mm |
Chainline | 50,4 mm |
Q-factor | 168 mm |
Axle diameter | 24 mm |
Compatible housing width | 68/73 mm |
Recommended bottom bracket | SM-BB93 or SM-BB94-41A |
Recommended chain | HG-X11 |
Features
- Standard Q-factor
- 4 arm spider with special angle
- cold forged aluminium
- specific crank arm design
Hollowtech II
The concept of Hollowtech II technology was designed to produce an optimized crankset that minimizes the amount of power the rider needs to pedal. The high stiffness of the crankset ensures the efficiency of power transmission when pedaling, while its light weight relieves the rider, especially on longer distances. The crankset was developed with an optimal balance between stiffness, rotational efficiency, light weight and attractive appearance in mind. Hollowtech technology allows for extremely lightweight, hollow crank arms that are manufactured using Shimano's exclusive forging technology to achieve maximum stiffness. In addition, the Hollowtech II crankset has the right crank firmly connected to the axle of the bottom bracket, achieving an optimal balance between maximum stiffness and minimum weight. The externally mounted bottom bracket offers a better weight distribution and more stability, which ensures a more efficient power transmission.
