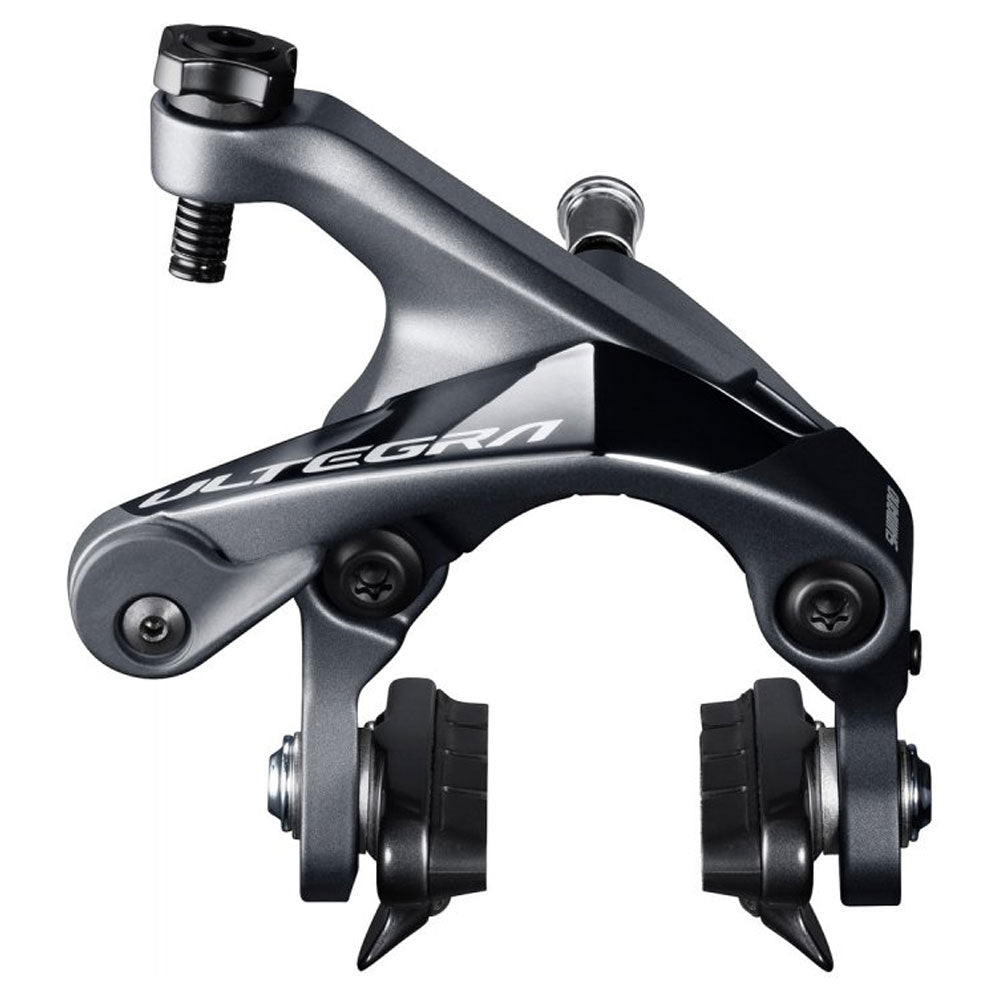

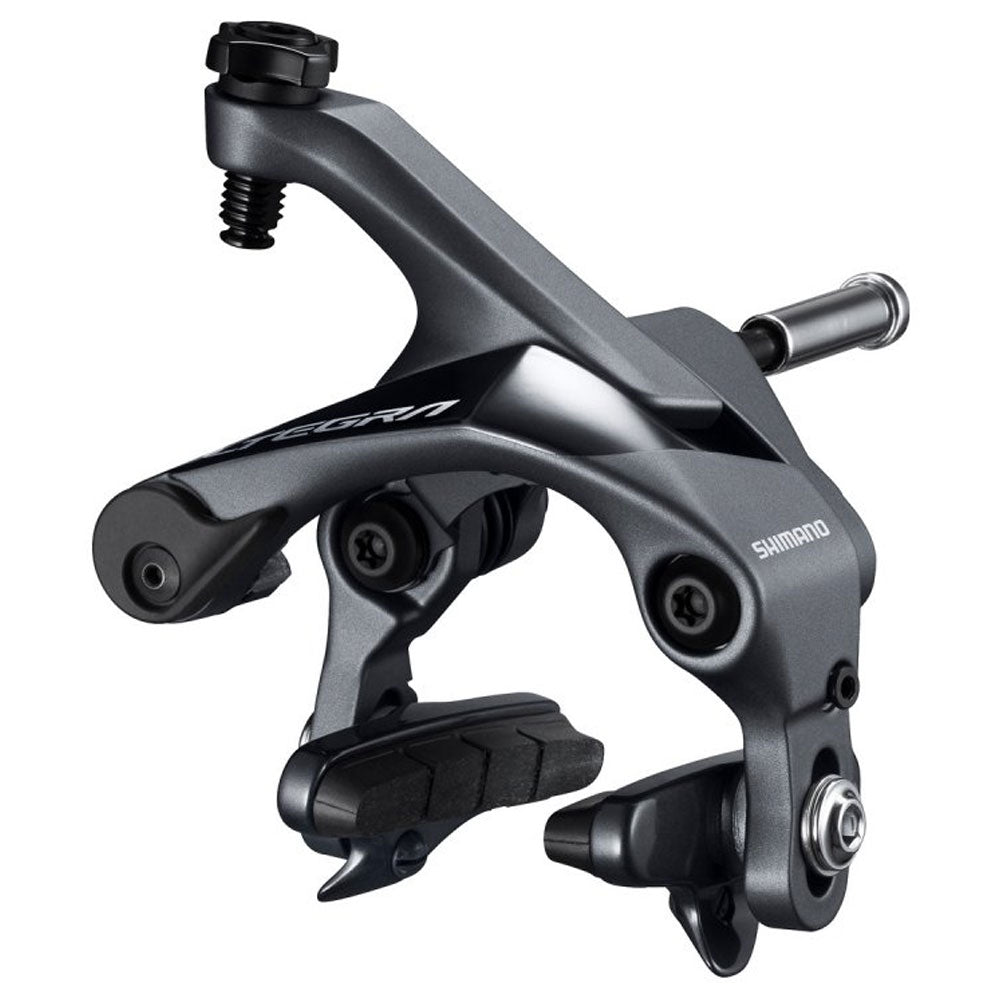

Shimano Ultegra brake Vr. R8000

The stabilizer between the axles reduces deformation, improves braking efficiency and gives a clear contact feeling. The BR-R8000 features a good balance between stiffness, weight and braking power.

SPECIFICATIONS

• Series: Ultegra R8000
• Use on: Road
• Type: double-pivot side-pull brake
• Mounting: Brake socket

TECHNICAL DATA

• material: aluminium
• Surface/Finish: anodized
• Pad: R55C4 (standard, R55C4 Carbon, R55C4-A, R55CT4 optional)
• Brake arm length: 51 mm
• Brake medium: brake cable
• Approvals: max. tire size 28 mm (28C) - max. rim width 20.8 to 28 mm
• Adjustment options: Shoe angle adjustment
• Weight: 182 g

FEATURES

• precise contact feeling with good balance between stiffness, weight and braking power
• stabilizer between the brake arms reduces deformation and increases efficiency
• slim design with smaller distance between the brake arms
• more tyre clearance
• cartridge brake pad carrier made of aluminium (painted)
• Tire protectors
• quick release device

TECHNOLOGIES

Dual Pivot

Dual Pivot technology results in weight-saving, compact and robust brakes. Especially the brakes of Dura Ace, Ultegra, 105 and Sora now offer maximum torsional stiffness and highest load capacity with minimal tolerances.

SLR-EV

SLR-EV is a revised SLR with symmetrical dual pivot side-pull brakes. A short-arm brake design uses two bearings and a roller to achieve greater efficiency in the articulation area and provide superior metering and power under braking.
