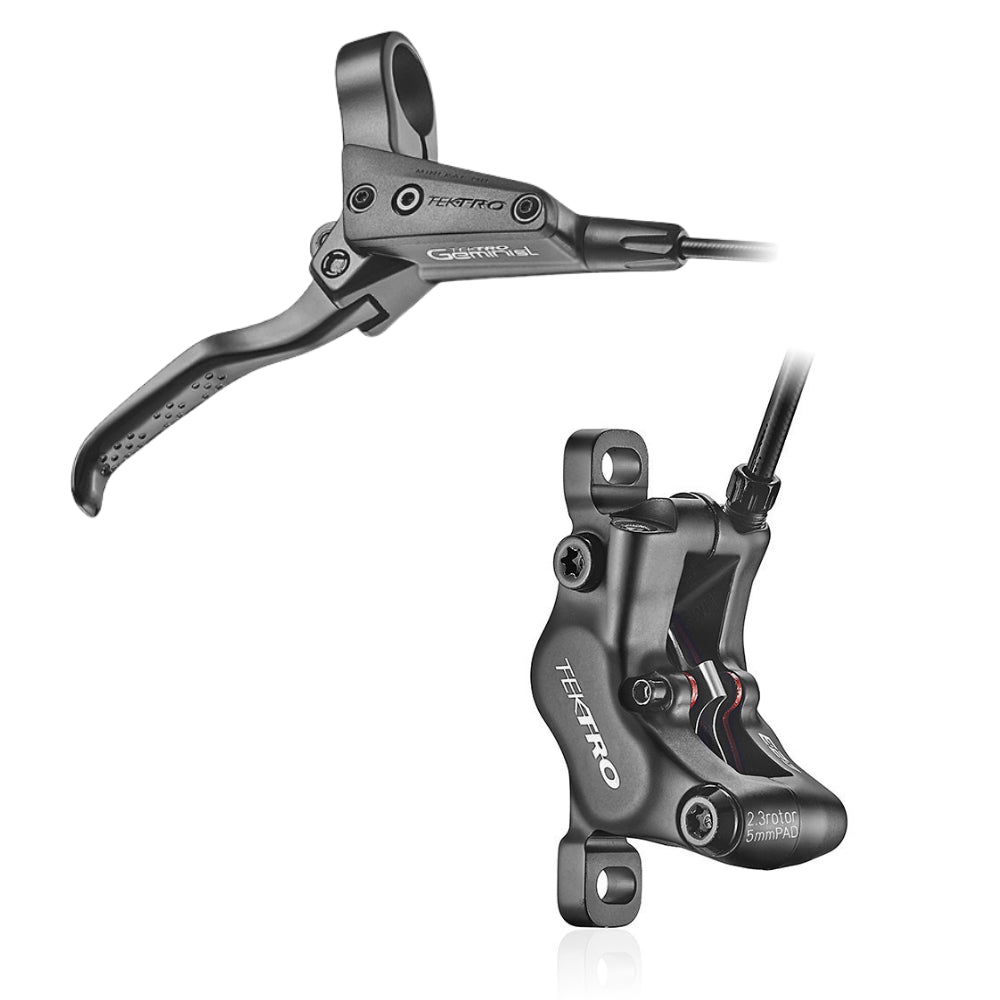

Tektro disc brake Gemini SL HD-M535 right

The TEKTRO Gemini HD-M535 is a powerful hydraulic disc brake for MTB use and is particularly recommended for e-bikes with a mid-motor. The open system with 4-piston brake calliper ensures powerful, yet easily controllable braking performance. According to TEKTRO, the system is also designed for easy installation, adjustment and maintenance.

The brake calliper has a newly forged 4-piston housing as well as a new universal oil guide and uses a 5.0 mm oil hose. The brake lever combines a forged aluminium lever with a cast bracket, has a reach adjustment, a one-piece clamp and a 2-finger lever in a black finish.

The system is designed for 2.3 mm brake discs. It supports 6-hole TR-17 discs and TR-45 / TR-45A centre-lock discs. The system uses 5 mm thick Q13RS resin pads, which are specified by TEKTRO as balanced brake pads. The weight is approx. 300 g at the front and 320 g at the rear, in each case without Rotor, adapter and mounting bolts.

Brief features:

• Hydraulic disc brake with 4 pistons
• High braking force with good modulation
• Recommended for e-bikes with mid-motor
• Reach Adjust for grip width adjustment
• 2-finger brake lever
• For 2.3 mm brake discs
• Compatible with 6-bolt TR-17 and Centre Lock TR-45 / TR-45A
