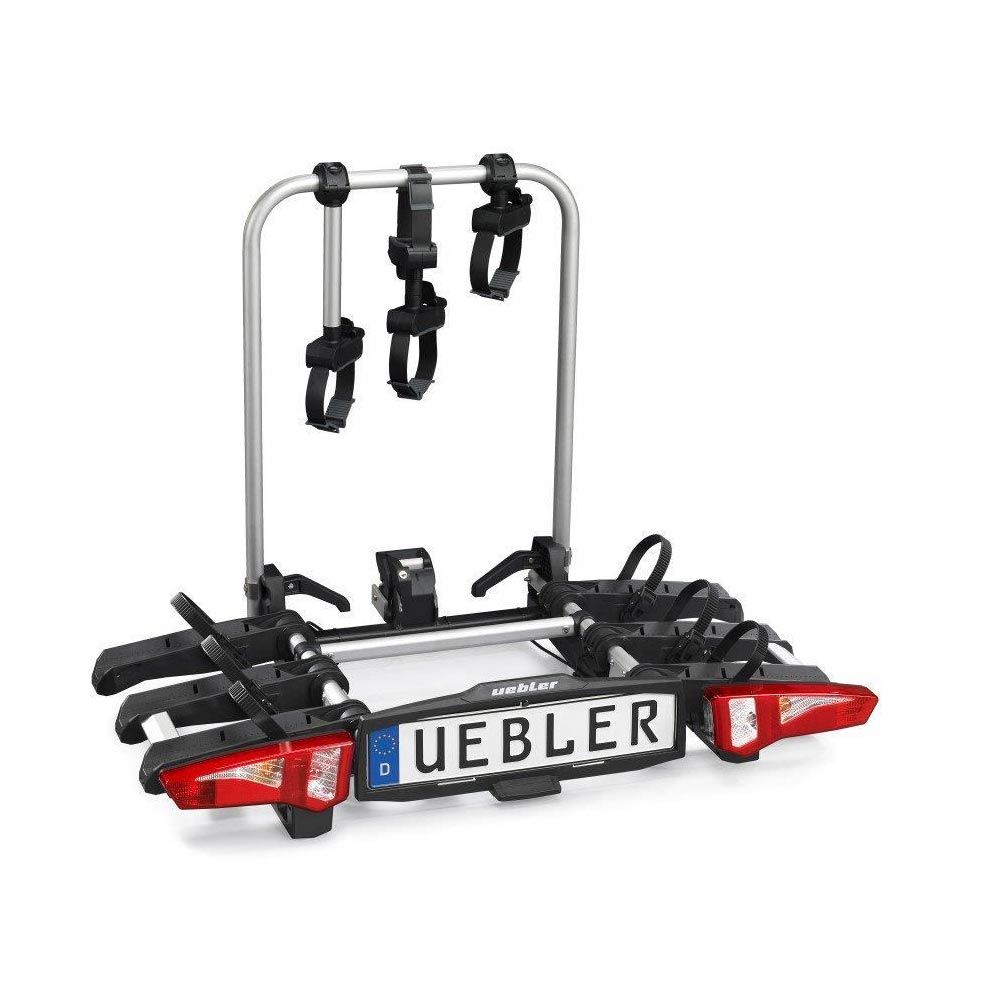

Uebler hitch carrier i31 Z-DC - 60° folding angle & reversing control

UEBLER products are delivered exclusively within Austria!

PRODUCT SPECIFICATIONS:

• Simple and effortless attachment to the trailer coupling thanks to lever-free, patented IQ quick-release fastener
• Patented, removable spacers with one-hand operation
• New, extra-wide wheel rails for tire widths up to 4.5 inches
• Foldable wheel track and light unit
• Ratchet system for securely fastening the wheels to the wheel rail
• Convenient release of the folding function with foot lever
• Quick-release lever for securing the wide carrier frame
• Keyed alike anti-theft device
• Low tare weight for high carrying comfort and high payload

TECHNICAL DATA:

• Number of bikes: 3
• Suitable for e-bikes: Yes
• Dimensions (W H D): 119 x 89 x 78 cm
• Dimensions (W H D) folded: 61 x 22 x 82 cm
• Weight 18 kg
• Maximum payload
• Drawbar load - tare weight (coupling carrier) = max. payload
• Attention: Observe the maximum payload (72 kg) of the coupling carrier.
• Maximum wheelbase of the bicycle: 130 cm
• Can also be folded away with bicycles: 60 degrees
• Bicycle frame diameter: up to 115 mm round tube or 120 x 80 mm rectangular tube or 95 x 95 mm square tube
• Bicycle anti-theft device / lockable: Yes
• Rack anti-theft device / lockable: Yes
• Rail spacing: 220 / 200 mm
• EuroBE / TÜV and DEKRA approval: Yes
• Maximum permissible bicycle tire width: 3" (approx. 7 cm) 4.5" (approx. 11.5 cm)
• Quality product, made in Germany: Yes
