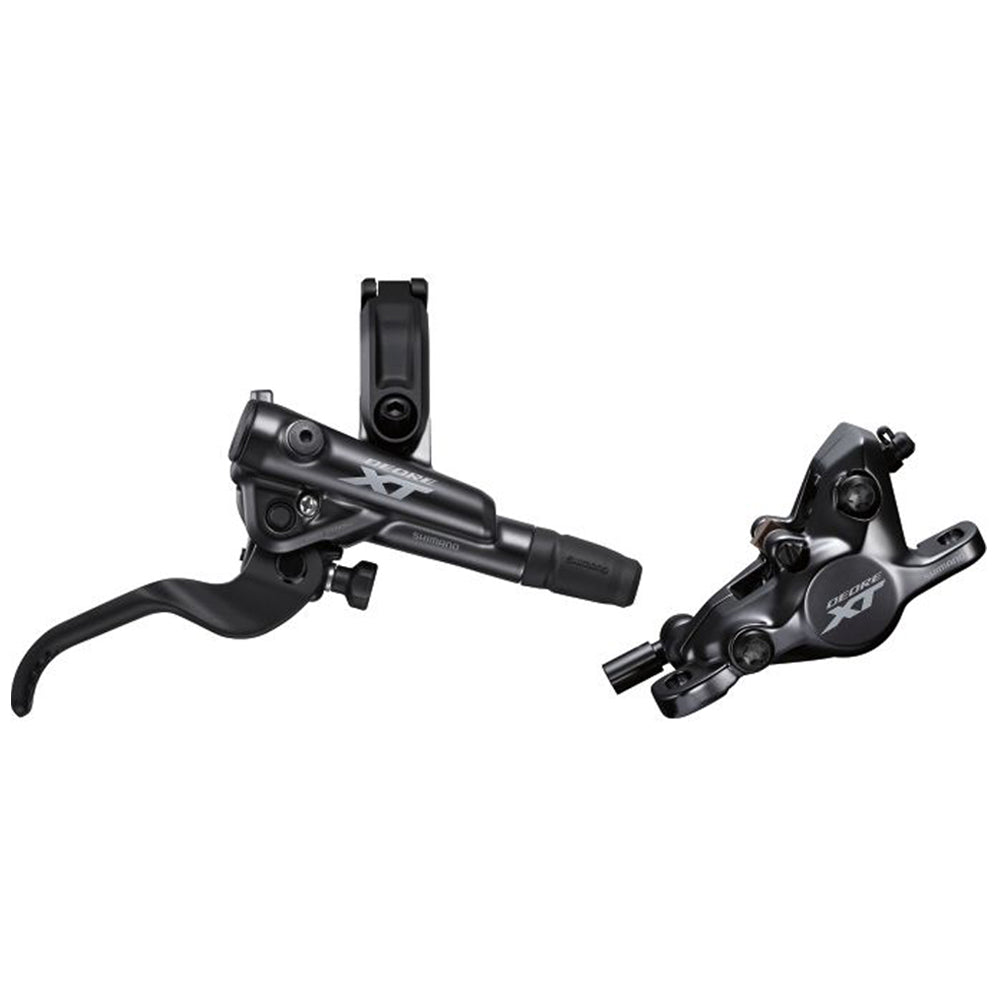

Shimano disc brake Deore HR XT M8100

SHIMANO DEORE XT hydraulic disc brake lever I-SPEC EV clamp mounting.

The SHIMANO DEORE XT BL-M8100 brake lever is designed for light weight and cross-country specific braking performance and conveys a lot of security thanks to intuitive modulation.

Features:

Intuitive and versatile braking helps you focus on the trail

• Improved position of the lever axis with additional support and optimized ease of use
• Increased flexibility and action-optimized cockpit layout
• I-SPEC EV

High strength

• 10% stiffer than M7000, even at high temperatures
• Faster brake response with shorter idle travel

"Rider Tuned" adjustment

• Grip width adjustment without tools
• Idle travel adjustable

Specifications:

• MODEL NUMBER: BL-M8100
• GROUP: DEORE XT M8100 group
• Color: Series color
• Average weight: 105
• Brake line color (kit). Black
• Brake line kit: SM-BH90-SBM
• Brake type: Hydraulic disc brake
• Line connection: Straight
• Compatible Shift Lever Mount_I-SPEC EV: ✔
• Idle travel adjustable: ✔
• Funnel vent: ✔
• J-Kit specification (for OEM): ✔
• Lever size (fingers). 2
• Oil: SHIMANO Mineral
• Grip width adjustment_toolless: ✔
• Recommended caliper: BR-M8100, BR-M8110-R, BR-M8120.
• SERVO WAVE: ✔
• Compatible shift lever bracket_clamp: ✔
• Clamp_Open Clamp: ✔
• Adjustment range for shift lever rotation angle (I-SPEC EV; degrees): 20

SHIMANO DEORE XT hydraulic disc brake 2-piston caliper.

The SHIMANO DEORE XT M8100 caliper provides powerful, reliable braking performance in all conditions with a lightweight design

Features:

Premium adjustment provides more control

• Faster piston response

Light weight

• Two pistons

Fast and precise assembly

• Version for banjo bolt connection and internal line routing

Specifications:

• MODEL NUMBER: BR-M8100
• GROUP: DEORE XT M8100 Group
• Color: Series color
• Average weight: 269
• Brake caliper suitable for ICE TECHNOLOGIES pad: ✔
• Brake line color (kit): Black
• Brake line kit: SM-BH90-SBM
• Brake type: Hydraulic disc brake
• Brake caliper fixing screw_securing method against loosening: snap ring
• Brake caliper fixing bolt_tool size: 5 mm
• Line connection: Banjo
• Mount type: pedestal version
• ONE WAY BLEEDING: ✔
• Brake pad mounting: Brake pad axle
• Piston: 2
• Recommended brake lever: BL-M8100 BL-T8100
• Recommended brake disc: RT-MT800
• J-Kit specification (for OEM): ✔
• Oil: SHIMANO Mineral
• Compatible brake disc size_140 mm (SS): ✔
• Compatible brake disc size_160 mm (S): ✔
• Compatible brake disc size_180 mm (M): ✔
• Compatible brake disc size_203 mm (L): ✔
• Brake_pad_Option 1: J05A-RF Resin (with cooling fins)
• Brake_pads_Option 2: J04C-MF Metal (with cooling fins)
• Brake_pad_Standard 1: G05A-RX Synthetic resin (without cooling fins)
• Brake_rim_option 2: G04S-MX Metal (without cooling fins)
