SQ-Lab handlebars 3OX aluminium, high rise 12

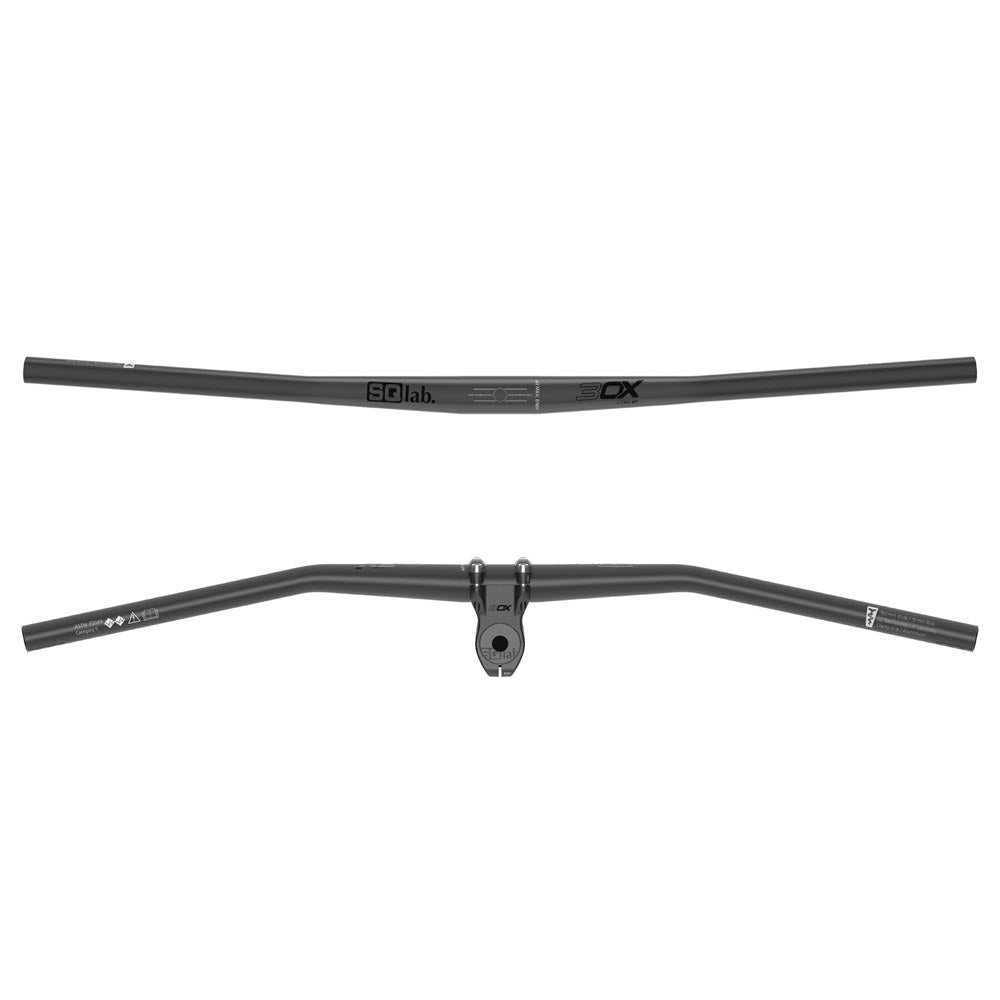

The handlebars are supplied without the stem shown.

The 12° backsweep ensures a straight transition from the forearm to the hand and protects the wrist from the extreme stresses of downhill riding with a short reach and a more upright riding position. The 4° upsweep determines the elbow position for an active riding style. The 15mm, 30mm or 45mm rise (handlebar height) allows individual adjustment of the riding position.

• Clamping 31.8 mm

Passed the "Zedler End of Life" test with flying colors. The perfect coordination of shape, wall thickness and diameter together with the complex bend, optimized for riding dynamics and anatomy, make the new SQlab 3OX handlebars the most stable and at the same time lightest handlebars currently available.

TECHNICAL DATA:

• Item number: 2057 / 2058 / 2059
• Weight in G: 325 / 330 / 335
• Material: Aluminum
• Width in mm: 780
• Maximum shortenable width in mm: 720
• Rise in mm: 15 / 30 / 45
• Backsweep in °: 12
• Upsweep in °: 4
• Downsweep in °: 0
• Clamping in mm: 31.8
• Clamping width of the stem in mm: min 46 - max 58
• maximum tightening torque in nm: 8
• maximum permissible system weight in KG: 120
